Cygnus Instruments

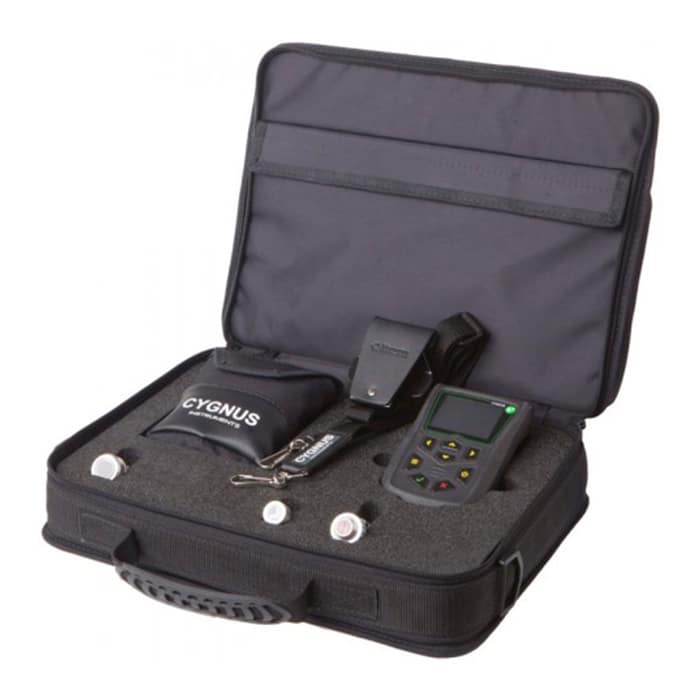

6+ PRO Ultrasonic Thickness Gauge

The Cygnus 6+ PRO has a range of features for the professional user including, multi-mode measuring capabilities, A-scan, real-time B‑scan, manual and automatic gain control and comprehensive data logging. Designed for the harshest of environments with a simple to use keypad and intuitive menus. It incorporates a bright colour LCD display and high durability end-mounted rotatable LCD display for easy viewing in a hands-free and rope access applications.

Price and delivery time will be given on request
Measuring Modes Multiple-Echo, Echo-Echo, Single-Echo
Materials Sound velocities between 1000 – 9000 m/s
Accuracy ±0.1 mm or 0.1% of thickness measurement, whichever is greatest
Resolution Multiple-Echo mode – 0.1 mm or 0.05 mm, Single-Echo and Echo-Echo modes – 0.01 mm
Measurement Range in Steel 'See Datasheet'
Connector Twin Lemo 00
Power 3 x AA batteries (10 hours)
Electronics Dual channel pulser
Display 2.4″ quarter VGA LCD and end-mounted LCD (rotatable)
Size 132 x 82 x 34 mm
Weight 300 grams (inc. batteries)
Data Logging Capacity up to 5,000 points including A-scans
Computer Software CygLink
IP rating IP67

The Cygnus 6+ PRO has a range of features for the professional user including, multi-mode measuring capabilities, A-scan, real-time B‑scan, manual and automatic gain control and comprehensive data logging. Designed for the harshest of environments with a simple to use keypad and intuitive menus. It incorporates a bright colour LCD display and high durability end-mounted rotatable LCD display for easy viewing in a hands-free and rope access applications.

The twin shot injection moulded enclosure has a soft but durable TPE outer skin which is both comfortable and extremely durable while the inner shell is strong, keeping the electronics totally sealed from the outside world.

The unit still relies on Multiple-Echo to provide simple and accurate measurements, with the added benefit of Echo-Echo and Single-Echo using twin crystal probes for extreme corrosion. Echo‑Echo for measurements on painted metals but with heavy back wall corrosion/pitting and Single-Echo for measurements on uncoated surfaces with the heavy front face and/or back-wall corrosion and attenuative materials such as cast metals or plastics/composites.
